Second-order filter for passive audio crossovers.
Band-pass filter with a slope of 12 dB per octave.

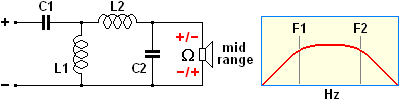

Scheme of part of audio crossovers, band-pass 12 dB per octave.

It calculates the components values of a band pass filter for a passive audio crossovers.
Normally used for three-way speakers, the band pass is the central way who supplies the transducer for reproduce the middle frequency (midrange).
If speaker has more than three ways, all central ways can be filtered with band pass filters.

Data input

F1 - Cutoff frequency (low):

Hz (mm)

F2 - Cutoff frequency (high):

Hz (mm)

Nominal impedance of the transducer:


Wait calculate.
Value of the capacitor C1 µF
Value of the inductor L1 mH
Value of the capacitor C2 µF
Value of the inductor L2 mH

It sees also : Common information for components of a cross-over.
