Air dynamic pressure.

The dynamic pressure is the source of energy for sailing boats, windmills and wind power plants.
It comes from the kinetic energy of the gas in motion so it depends on velocity and density of the gas flow.

To know the drag of an object in motion at a certain speed or the push which the wind acts on an object, is necessary calculate the dynamic pressure.

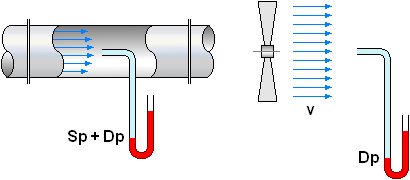

The total pressure is the sum of static pressure and dynamic pressure.

Data input

Gas selection

Manual data Air (sea level) -40 gr C Air (sea level) -20 gr C Air (sea level) 0 gr C Air (sea level) 20 gr C Air (sea level) 50 gr C Air (sea level) 100 gr C Air (sea level) 200 gr C Air (sea level) 300 gr C Air (sea level) 400 gr C Air (sea level) 500 gr C Air (altitude 1000 m) -40 gr C Air (altitude 1000 m) -20 gr C Air (altitude 1000 m) 0 gr C Air (altitude 1000 m) 20 gr C Air (altitude 1000 m) 50 gr C Air (altitude 1000 m) 100 gr C Air (altitude 1000 m) 200 gr C Air (altitude 1000 m) 300 gr C Air (altitude 1000 m) 400 gr C Air (altitude 1000 m) 500 gr C

Gas density

kg/m³

Air flow or wind velocity

m/s km/h mi/h

Angle of attack:

°

Results.

Dynamic pressure .. Dp

mm H2O, kg/m² mbar, hPa Pa, N/m²

Velocity in Beaufort degrees

Velocity in Beaufort degrees:
The wind speed can be also expressed using the Beaufort scale, for this reason in addition to the dynamic pressure value is reported also the typed speed converted in Beaufort degrees.
